多联过滤器Vacuum Manifolds Filtration
多联过滤系统可同时进行多（单、三、六）个样品过滤，只需一个真空气源就可以完成全部操作，节省大量的时间，方便快捷。多联支架优选已做抛光处理的316L材质不锈钢，能耐大多数腐蚀性液体，与玻璃或不锈钢换膜过滤器配套使用。
Manifolds provide vacuum support for filtration of single, three or six test samples simultaneous. Only single vacuum source can help manifolds to finish the whole operation. They filter quickly and simply-more faster than normal vacuum filtration. The manifolds with polished Type316Lstainless steel accommodate glass or stainless steel filter holders, resistant to most aggressive liquids.
特点：Features
1. 每路支座都有一个独立开关，可单独操作。
Each station use separate control valve for independent operation.
2. 稳固的低重心设计使其不会因溶液满载而发生翻倒。
Sturdy units have low center of gravity so they won't tip when full loaded.
3. 已氧化的美观的铝制把手分布基座两端，使其更加稳固。
Anodized aluminium handles on both ends for positioning on benchtop.
4. 选用316L不锈钢渣堆叠而成的筛板（不锈钢过滤器），过滤更均匀细致，滤膜不易破坏。
技术参数：Specifications
|
型号
|
处理样品
|
外形尺寸(L×W×H)
|
换膜过滤器
|
容量
|
连接部件
|
|
MS-1G
|
1
|
220×110×118mm
|
材质：硼酸盐玻璃
筛板有效直径：39mm
筛板孔径：30-80um
|
40ml
300ml
500ml
|
9#硅胶塞，1L集液瓶
|
|
MS-3G
|
3
|
494×110×118mm
|
|
MS-6G
|
6
|
914×110×118mm
|
9#硅胶塞，2L集液瓶
|
|
MS-1S
|
1
|
220×110×118mm
|
材质：316L不锈钢
筛板有效直径：40mm
筛板孔径：30-60um
|
9#硅胶塞，1L集液瓶
|
|
MS-3S
|
3
|
494×110×118mm
|
|
MS-6S
|
6
|
914×110×118mm
|
9#硅胶塞，2L集液瓶
|
配置清单：

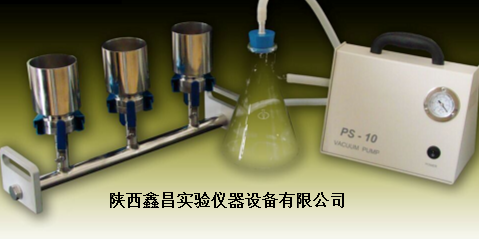

整套真空多联过滤系统包括：不锈钢多联支架、三或六套换膜过滤器、集液瓶、PS-10无油真空泵。
建议选用VG-50或VS-50换膜过滤器和PS-10（三联）或PD-50（六联）真空泵与其配套使用。
The whole vacuum manifolds filtration system includes: stainless steel manifolds, three or six filter holders, a joint flask and a vacuum source.
Regarding the filter holders, you can reference type VG-50 or VS-50 filter holders.
Regarding the vacuum source, you can reference type PS-10 (for three stations) or type PD-50 (for six stations) vacuum pump.
|
